Fire Pit Kits for sale

New site!

Better info, more stuff

Order Here

So many people that have hung out with the warmth and played in the sand of my wonderful Fire Gardens have asked me how they could make one of their own. Well I’ve taken the guess work out of all the fittings and sizes and put together a few kits that I use all the time in my work. I’ve also put together instructions on how to use these kits to make your own Fire Garden.

Questions? contact me at 510 444 7007, or email me at books@formandreform.com


Sand Fire GardenMore DIY How To Projects

______________________________________________________________________________________



Order Here

Available Kits:

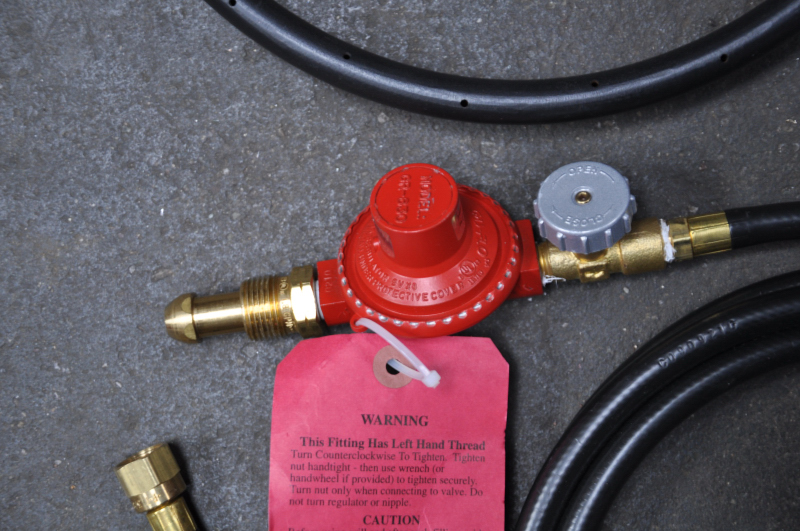

Fire Ring Kits with 30 psi propane regulators






This is a great set up for 6-24″ fire rings in 10-36″ sand gardens



Contains:

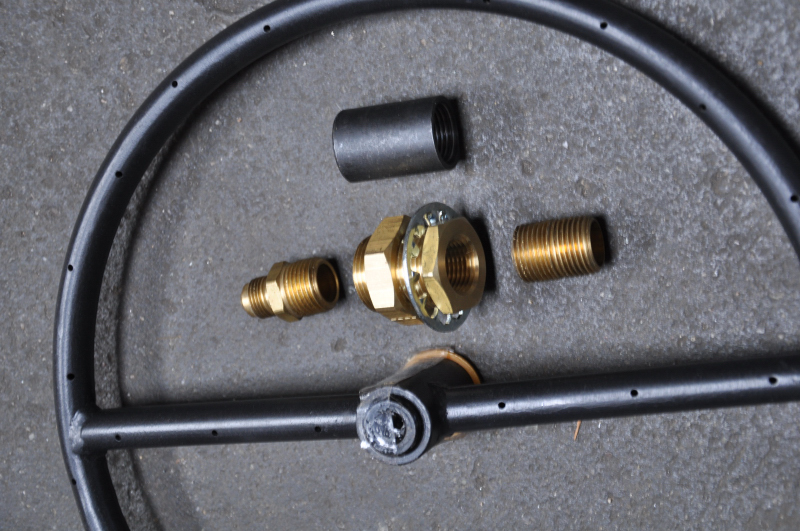

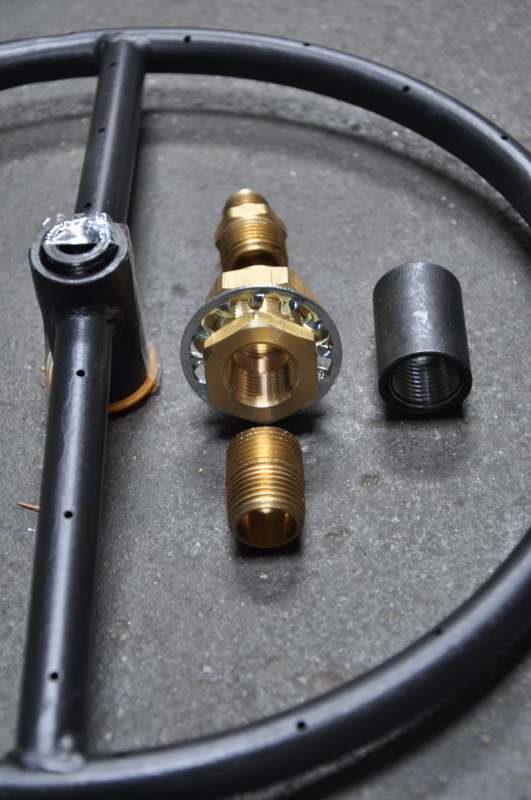

-12″ steel fire ring, weldable 1/2 coupler, 1/2 Bulkhead coupler, 3/8″ 45 deg flare to 1/2 NPT fitting (to connect to the gas hose), 1/2  brass nipple, Teflon tape, lighter, and a 30 psi regulator with needle valve and 12′ hose.


-Includes a 1/2 Bulkhead coupler that requires no welding or use the black coupler to weld into your container.



Order Here

________________________________________________________________________________

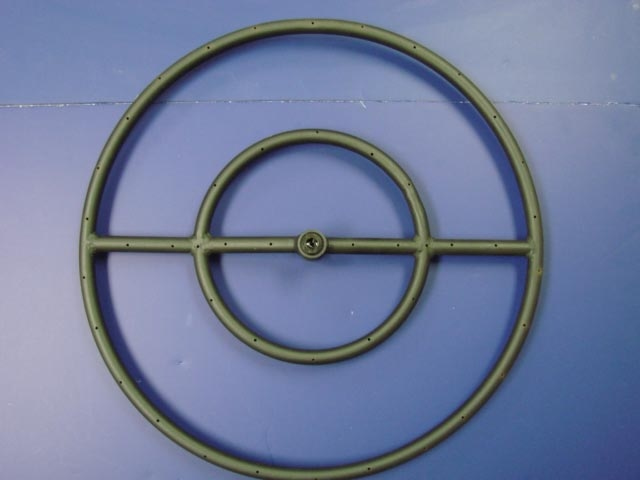

Upgrade either kit to a bigger ring and/or to stainless steel to prevent holes in burner from rusting shut during the rainy season.

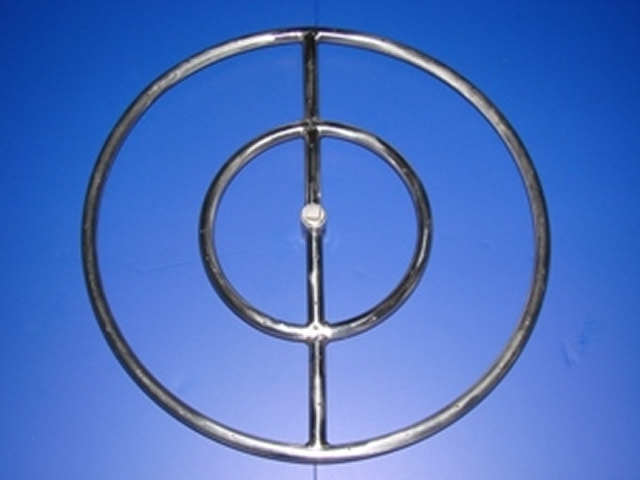

30″ Dual burner Stainless

_______________________________________________________________________________

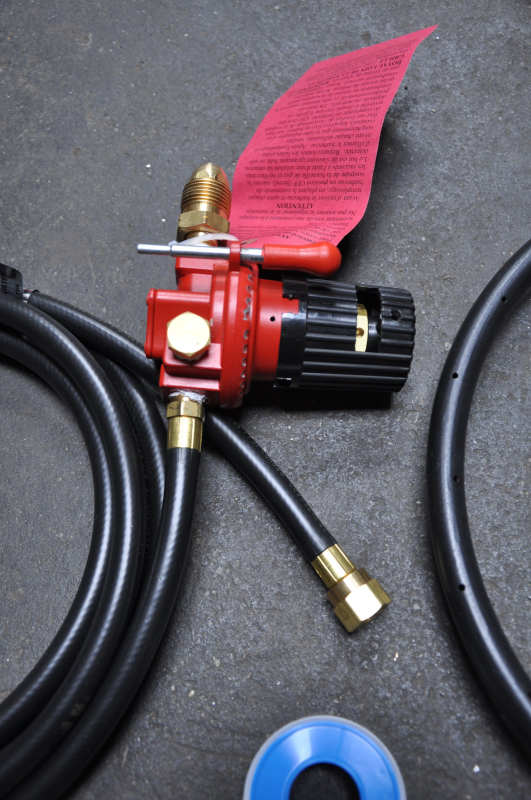

Fire Ring Kits with High Flow propane regulators






This is a great set up for 6-24″ fire rings in 10-36″ sand gardens where higher flow and finer tuning of the flame is important. Larger fire rings of 24″ and above should use this regulator.




-12″ steel fire ring, weldable 1/2 coupler, 1/2 Bulkhead coupler, 3/8″ 45 deg flare to 1/2 NPT fitting (to connect to the gas hose), 1/2  brass nipple, Teflon tape, lighter, and a 0-60 psi regulator  with a 12′ hose.


-Includes a 1/2 Bulkhead coupler that requires no welding or use the black coupler to weld into your container.

Order Here

__________________________________________________________________________________________

Fire Rings for Natural Gas

Just fire rings are available for Natural Gas applications. This 1/2 NPT chrome straight Key valve is a great way to control the gas flow and size of the flames.



Order Here

__________________________________________________________________________________________

Examples of my Fire Gardens Made with these 2 fire pit kits



dsc_0391.jpg dsc_0429.jpg dsc_0649.JPG dsc_0746.jpg 10.jpg dsc_0731.jpg fire-ants.jpg 2.jpg

_______________________________________________________________________________________________________

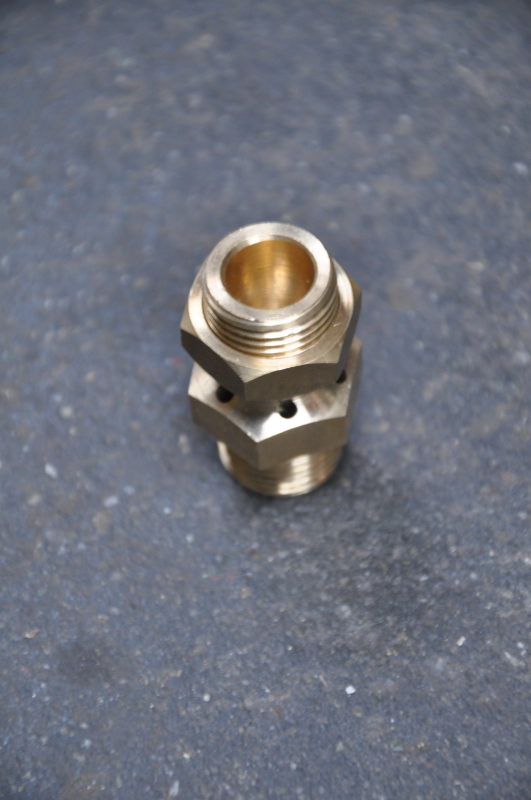

Venturi Upgrade Kit



This is a great addition to Fire ring kits for, rocks, high temp glass, or other porous materials etc that need a venturi (gas air mixer) to achieve a clean soot free burn.

Contains:

1/2 NPT venturi with air adjustment nut and 45 deg flare to 1/2 NPT male fitting to attach the hose to.

These are only available as upgrades to the kits I sell above and are not sold individually.



________________________________________________________________________________________________________



Examples of Fire Gardens and Patio Heaters (Replaced the fire ring with unique burners) made with the venturi kit upgrade





dsc_0571.jpg dsc_0512.jpg dsc_0538.jpg dsc_0455.jpg 2223831343_81d5c57a70.jpg dsc_0024.JPG

contact me at 510 444 7007, or email me at books@formandreform.com

Email me your name, address, phone number, what you want and any questions. I will contact you with a price and get your credit card over the phone.





In addition to these kits you will need a container that is able to handle high temperatures and be fully sealed underneath (leaks or drain holes will also allow gas out). A 55 gal drum works good. The weldable coupler provided will need to be welded though the bottom, legs added, then simply attach the fittings, ring, hose, propane BBQ tank and add sand. Sand should be 3-4″ above the ring. This is a match light system and I like those plumbing torches to light mine. Light the torch, then turn on the gas with the flame above the sand. It will take several seconds for the sand to fill with gas and rise to the top. Once lit it’s time to play in the sand with simple tools. This works best after dark when you can turn the flame down very low tell you only see a blue flame.

____________________________________________________________________________________________________



Fully Auto Kits

Full line catalog of out door fire products



http___wwwhearthproductscontrols

19SS150HWI FIRE PIT -$1425 (Thermocouple / Hot Wire Ignition System)

This 19″ fire pit uses a revolutionary electronic control module (TCI Module) combining proven thermocouple technology with reliable hot-wire ignition.

Available in 12″-36″ ring sizes, 13″ – 42″ pans. I can get these in flat pan styles, square rings and custom sizes.  Call for a quote

Drop-In Remote Electronic Ignition Fire Pit Kits-Bowl Pans

These are the top of the line, heavy duty, stainless steel fire pits controlled with handheld remote or wall switch.

• Comes fully assembled, ready to drop in (available for natural gas or propane)

• Constructed of stainless steel pan, fire ring, and valve box.

• Hot surface ignition system-120v A/C (24v A/C available upon request).

• Includes option of handheld remote or wall switch, vinyl fire pit cover and lava rock for pan.

Fire is hot! DO NOT TOUCH the sand. It’s sticks and will burn before you can get it off. I would add a safety rail to keep young ones from falling on the hot edge and in the sand. It’s also a great place to keep your tools and rest your feet. 30″ is a great height to stand next to, and 14-18″ is great to sit around. Provide a minimum of 6″ below the coupler on the bottom for the fittings and hose. Keep your sand dry by covering in the rain.

Contact me at 510 444 7007, or email me at books@formandreform.com

Order Here
